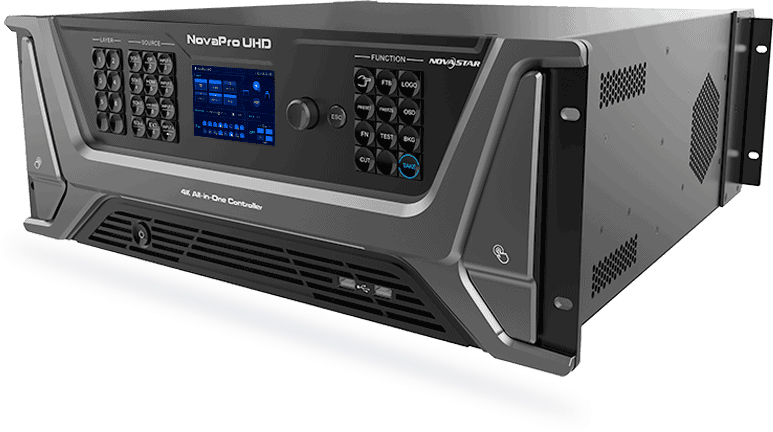

Video Controller NovaPro UHD

Описание

NovaPro UHD is an all-in-one controller, integrating a software control system with 4K processing and 4K sending. The NovaPro UHD features many cutting edge technologies, and a single unit is able to provide comprehensive control for high end rental and other applications, simplifying operation while increasing the value of the display.

Provides you with the flexibility you need to unleash your creativity

Support for multiple layers including: Two 4K x 2K, four 2K x 1K, LOGO, and BKG, as well as irregular shaped layers

Input
Connector	Quantity	Description
12G-SDI	4	Supports ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G) and ST-292 (HD) standard video inputs. Input resolutions up to 4K×2K@60Hz and downward compatible Supports 12G-SDI output with loop-through.Note:When the input source is a 12G-SDI signal, you must use CANARE / L-4.5CHD+ / UHDTV-SDI SDI cables and the cable length should be less than 50 m. 12G-SDI connectors 1, 2 and 3 DO NOT support the deinterlaced function, but connector 4 supports the function.
DP 1.2	1	Input resolutions up to 4K×2K@60Hz (8K×1K@60Hz) and downward compatible. Supports HDCP 1.3. DOES NOT support interlaced signal inputs.
HDMI 2.0	1	Input resolutions up to 4K×2K@60Hz (8K×1K@60Hz) and downward compatible Supports HDCP 1.4 and HDCP 2.2. DOES NOT support interlaced signal inputs. Supports HDMI 2.0 output with loop-through.
HDMI 1.3	4	D_4×HDMI 1.3 input card by default Input resolutions up to 1920×1080@60Hz Supports HDCP 1.3. Supports interlaced signal inputs. The HDMI input card can be replaced by a D_4×DVI input card.
Output
Connector	Quantity	Description
Ethernet port	16	Gigabit Ethernet output ports Maximum loading capacity: 10.4 million pixels Maximum width: 16384 pixels Maximum height: 8192 pixels
OPT 1–4	4	10G fiber optical output ports (copy and hot backup) OPT 1 transmits data on Ethernet ports 1–8. OPT 2 transmits data on Ethernet ports 9–16. OPT 3 is the copy/hot backup channel for OPT 1. OPT 4 is the copy/hot backup channel for OPT 2.
MVR	1	HDMI 1.3 connector A Multiviewer connector to monitor the input source, PVM, PGM or perform mixed monitoring
AUX	1	HDMI 1.3 connector An auxiliary output connector for connecting an auxiliary device, such as a teleprompter
Control
Connector	Quantity	Description
ETHERNET	1	For PC communication or network connection
USB	3	1 × USB (Type-B): Connect to the PC for device debugging. 2 × USB (Type-A): Insert a USB drive to perform system update. Connect a mouse or keyboard. Output connector for device cascading
GENLOCK IN-LOOP	1	Connect a synchronization signal source to synchronize the cascaded devices.
CONTROL UI	1	Connect to a monitor for displaying the user interface of the embedded Master VI software.
